CL006-07 Cement Gun
1. Medical Device
i) Device name. Bone Cement Mixing System
ii) Model No: CL006-03
iii)Catalogue No. (REF)E, CL006-03BE
2. Indications (Intended Use)
The Bone Cement Moxing System to for mixing of the bone cement powder and liquid monomer.
3. Working Principle
This device mixes the bone cement evenly by hand
After mising the bone cement, connect the bone cement gun (optional) and inject (or fill) the bone cement into the medullary cavity or the desired location.
Maintenance, Cleaning, and Sterilization
The bone cement gun is intended for repeated use and should be maintained, cleaned, and sterilized before and after each use.
1) Maintenance and Cleaning of the Bone Cement Gun: The bone cement gun should be kept free from dust and stored flat in a cool place. It is recommended to clean the surface of the bone cement gun by dampening a cloth with detergent and slowly wiping the exterior. Use a non-corrosive cleaning agent, such as soap and water, and avoid liquid entering the interior of the gun during cleaning
2) Sterilization: Moist Heat sterilization is recommended for sterilization method. This product is a reusable product and should be sterilization before use and after use by medical institutions. Moist heat sterilization method according to the requirements of medical institutions.
Components

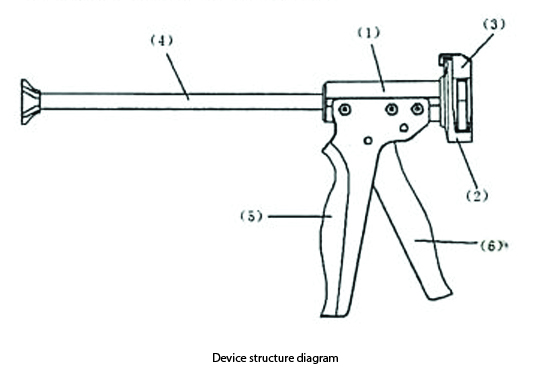

1) This device consists of Body (1), Clasp ring seat (2). Clasp ring cover (3), Push rod (4), Fixed handle (5) and Impact handle (6)
2) The Body, Clasp ring seat, Clasp ring cover and Push rod are made of stainless steel. The Fixed handle and Impact handle are made of plastic material
